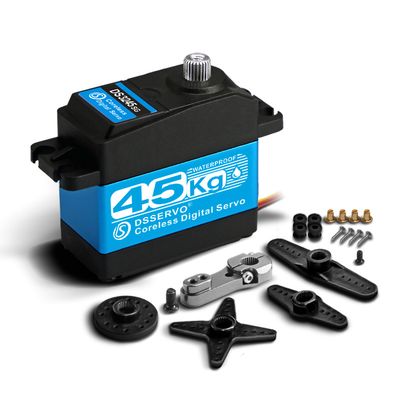

Dsservo DS3245MG Hollow Cup High Torque Digital Servo For FPV Racing drone
  • name

Dsservo DS3245MG Hollow Cup High Torque Digital Servo For FPV Racing drone

MOQ: 10pcs
Price: 22USD
Standard Packaging: 15cm*15cm*8cm
Delivery Period: 5-8days
Payment Method: T/T
Supply Capacity: 100PCS/H
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Dsservo
Certification
CE
Model Number
KL-45KG
Product Name:
45KG Digital Servo
MOQ:
10pcs
Application:
RC/FPV
Function:
Signal Transmission
Weight:
0.5g(receiver Only)
Minimum Order Quantity:
10pcs
Price:
22USD
Packaging Details:
15cm*15cm*8cm
Delivery Time:
5-8days
Payment Terms:
T/T
Supply Ability:
100PCS/H
Highlight:

FPV racing drone digital servo

,

hollow cup high torque servo

,

DS3245MG servo for drone

Product Description

Dsservo DS3245MG Hollow Cup High Torque Digital Servo For FPV Racing drone

Product Description:

  • Apply Environmental Condition
No. Item Specification
1-1  Storage Temperature Range -55℃～80℃
1-2  Operating Temperature Range -50℃～70℃
1-3 Operating Voltage Range 5-8.4V
  • Mechanical Specification
No. Item Specification
2-1  Size 40*20*38.5mm
2-2 Weight 60g
2-3  Gear ratio 342
2-4  Bearing Double bearing
2-5  Connector wire 300±5mm
2-6 马达 Motor Coreless motor
2-7 防水性能Waterproof performance IP66




Detailed pictures:

  • Electrical Specification
No. Operating Voltage 5V 6V 7.4V 8.4V
3-1  Idle current(at stopped) 5mA 5mA 5mA 5mA
3-2 Operating speed (at no load) 0.18 sec/60° 0.15 sec/60° 0.13 sec/60° 0.11 sec/60°
3-3 Stall torque (at locked) 35 kg-cm 40 kg-cm 46 kg-cm 51 kg-cm
3-4 Stall current (at locked) 3.5A 4.2 A 5.2 A 5.8A
  • Control Specification
No. Item Specification
4-1 Control System PWM(Pulse width modification)
4-2  Pulse width range 500～2500µsec
4-3 Neutral position 1500µsec
4-4  Running degree 180° or 270° (when 500～2500 μ sec)
4-5 Dead band width 2 µsec
4-6 Operating frequency 50-330Hz
4-7 Rotating direction Counterclockwise (when 500～2500 µsec)

About PWM Control:

Dsservo DS3245MG Hollow Cup High Torque Digital Servo For FPV Racing drone 0

Packing and Shipping:



Dsservo DS3245MG Hollow Cup High Torque Digital Servo For FPV Racing drone 1

FAQ:

What is the brand name of this FPV Drone Accessory?

The brand name of this FPV Drone Accessory is Klesman.

2.

What is the model number of this FPV Drone Accessory?

The model number of this FPV Drone Accessory is Model Number.

3.

Where is this FPV Drone Accessory made?

This FPV Drone Accessory is made in China.

4.

Is this FPV Drone Accessory CE certified?

Yes, this FPV Drone Accessory is CE certified.

5.

What is the minimum order quantity for this FPV Drone Accessory?

The minimum order quantity for this FPV Drone Accessory is 20 pieces.

6.

How much does this FPV Drone Accessory cost?

This FPV Drone Accessory costs 32 USD.

7.

What are the packaging details of this FPV Drone Accessory?

The packaging details of this FPV Drone Accessory are 15cm*15cm*8cm.

8.

What is the delivery time for this FPV Drone Accessory?

The delivery time for this FPV Drone Accessory is 5-8 days.

9.

What are the payment terms for this FPV Drone Accessory?

The payment terms for this FPV Drone Accessory are T/T.

10.

What is the supply ability of this FPV Drone Accessory?

The supply ability of this FPV Drone Accessory is 100 pieces per hour.
